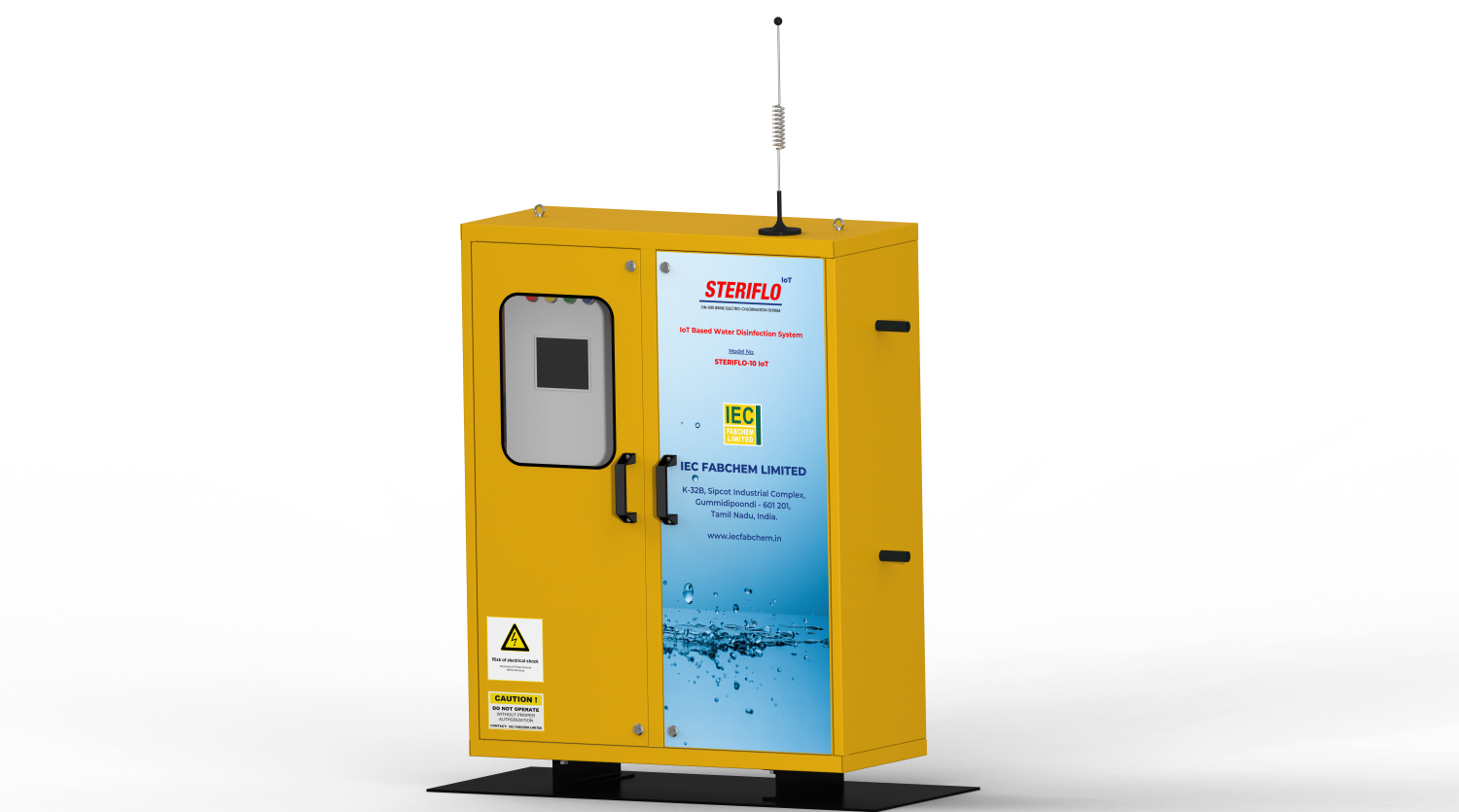

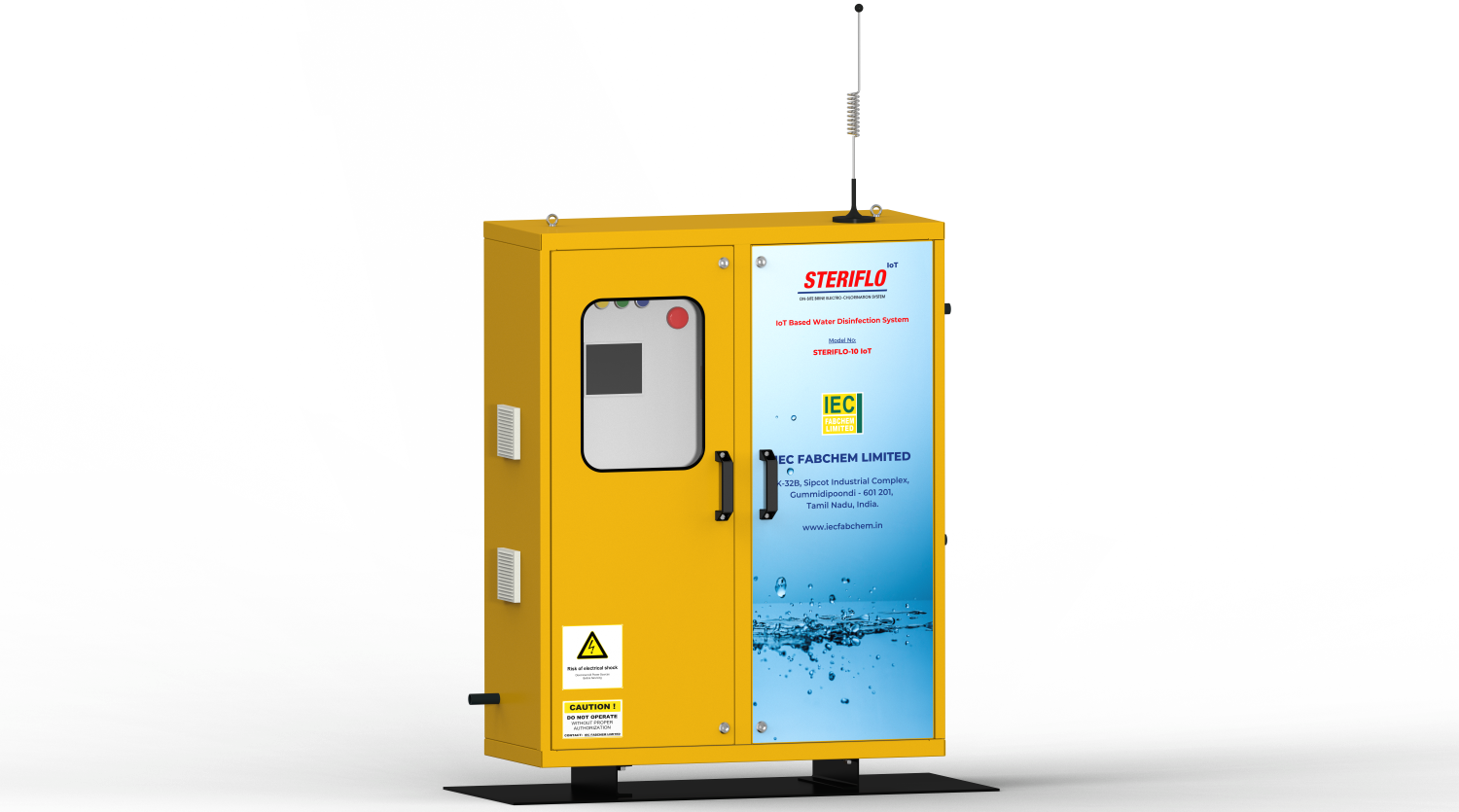

WHY STERIFLO ?
On-site sodium hypochlorite ( NaOCl ) generation by brine electro-chlorination is a safe and reliable method for disinfection of water. The key raw materials for sodium hypochlorite production are Common salt, Potable water, Single Phase Power Supply.
SOLUTION
IEC'S onsite sodium hypochlorite generators produce chlorine in the form of sodium hypochlorite by means of electrolysis of salt (brine) solution. The system is capable of generating sodium hypochlorite solution upto 7000 ppm (0.7 %) strength and comes in a modular skid mounted plug and play package.
APPLICATIONS

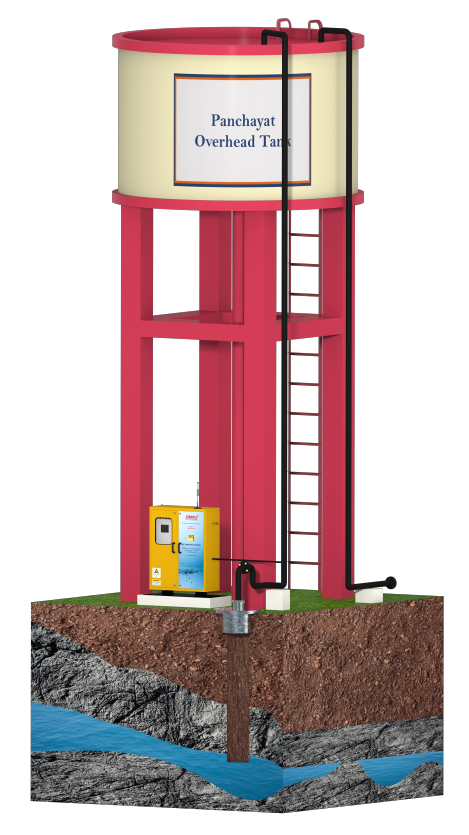

Rural water supply Over Head Tank (OHT) water disinfection prior to distribution. STERIFLO SYSTEM is typically Installed near Over Head Tank (OHT)
SPECIAL EMPHASIS ON SAFETY
Electro-chlorination doesn't generate any toxic byproducts and it eliminates the handling of hazardous chemicals, such as chlorine gas or sodium hypochlorite in high concentrations.
BRINE ELECTROLYSIS PROCESS
The following Electrochemical reactions will take place inside the Electrochemical Cell
At the Anode : Chloride ions in the water deplete and Chlorine gets evolved
2 Cl → Cl2 ↑ + 2e
At the Cathode : Hydrogen and Hydroxyl ions evolve. These Hydroxyl ions react with Sodium atoms and form Sodium Hydroxide.
'2 H2O + 2e → 2OH + H2 ↑
Overall Reaction
NaCl + H2O + Electricity → NaOCl + H2 ↑

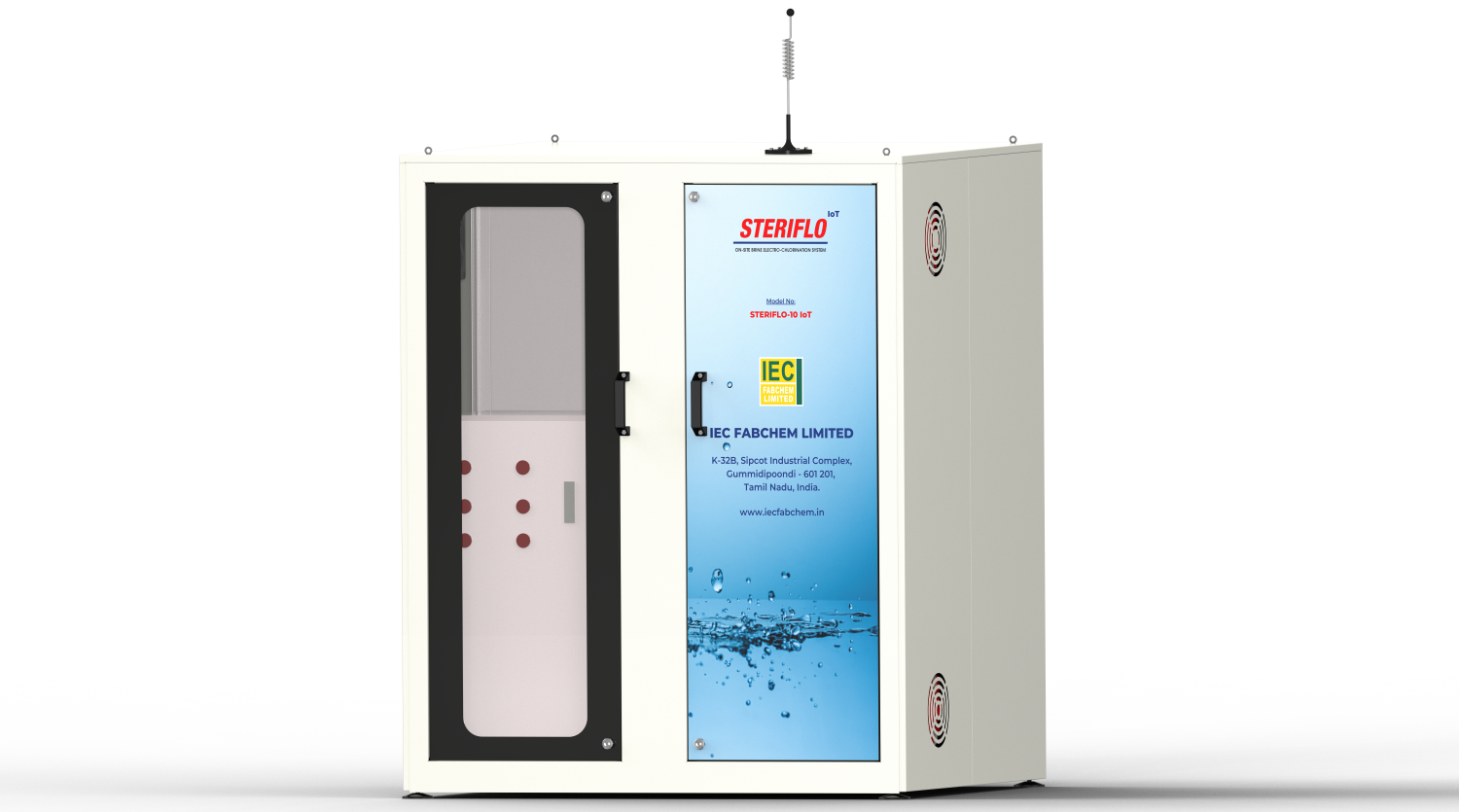

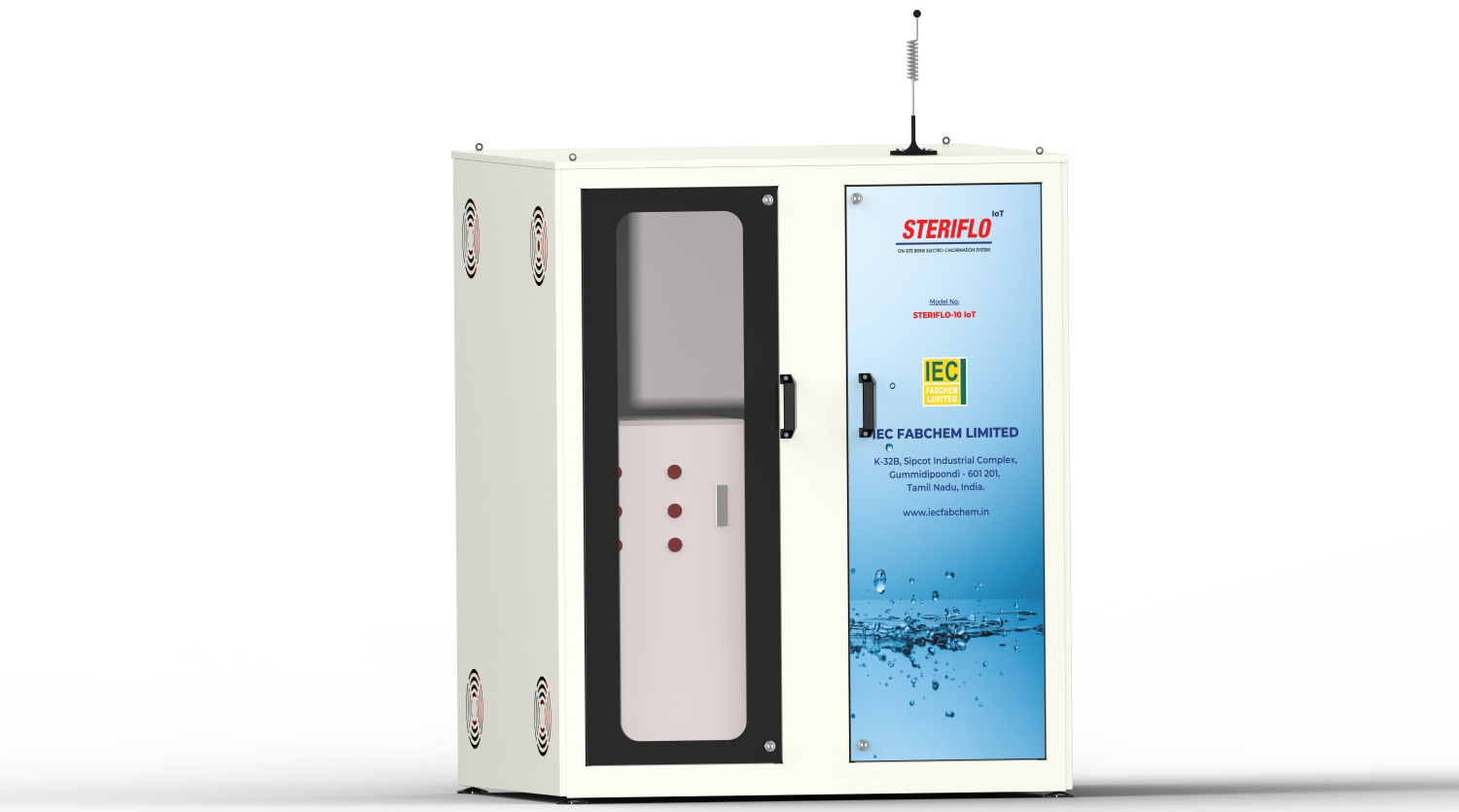

DESIGN
Features
The entire electrolyzer system is housed in a safe chamber.
Advanced cell design ensures proper production of chlorine.
Hypo tank level controller controls the dosing facility.
Safe Operation and proper venting of hydrogen.
Process safety instruments with electrical interlock.
Operator friendly maintenance procedures.
| Models | Over Head Tanks Capacity |
Operating Hours |
Required Electrolyzer Capacity |
Connected load |
| STERIFLO 10 KL | 10 KL | 1 hr | 10 grams/hr | 250 VA |
| STERIFLO 30 KL | 30 KL | 3 hr | 10 grams/hr | 250 VA |
| STERIFLO 60 KL | 60 KL | 6 hr | 10 grams/hr | 250 VA |
| STERIFLO 100 KL | 100 KL | 4 hr | 25 grams/hr | 500 VA |
| STERIFLO 300 KL | 300 KL | 6 hr | 50 grams/hr | 500 VA |
| STERIFLO 600 KL | 600 KL | 6 hr | 100 grams/hr | 1000 VA |
| STERIFLO 1000 KL | 1000 KL | 5 hr | 200 grams/hr | 1500 VA |
| STERIFLO 2000 KL | 2000 KL | 5 hr | 400 grams/hr | 3000 VA |
| STERIFLO 3000 KL | 3000 KL | 5 hr | 600 grams/hr | 4500 VA |
TECHNICAL
Details
|
WATER SUPPLY |
Potable water @ 1.2 to 4.8 bar |
|
TEMPERATURE RANGE |
Temperature: 18-30°C (65°F - 65°F) |
|
SALT QUALITY |
99.7% pure dry weight solar salt or with water softener |
|
ELECTRICAL POWER |
>230 V AC 1 Phase 50Hz or |
|
CONTROL PANEL |
230 V AC 1 Phase 50 Hz |
|
OPERATOR INTERFACE |
PLC/HMI Touch screen* |
|
HYPOCHLORITE CONCENTRATION |
7000 ppm |
POWER CONVERTER & TREATMENT DOSE
A Dedicated Transformer Rectifier is provided to feed the Electrolyzer with Direct Current (DC). This rectifier will be combined with transformer as a single unit.
Dosage of hypo for drinking water disinfection is typically at the rate of 1 ppm at the distribution Over Head Tank inlet/outlet.
